If you’re planning to develop a lot, a boundary survey only tells you part of the story. It marks your corners. It confirms your lines. But it won’t tell you which way water runs across the site, how steep the buildable ground really is, or where a spring shows up after a hard rain.
That’s where a topographic survey comes in. It maps the land itself, not just the legal lines around it. For developers, that difference can change a site plan before it ever reaches a permit desk.
Here’s what a topographic survey picks up that a boundary survey never will.
How a Topographic Survey Reveals Which Way Water Moves Across Your Lot
A boundary survey confirms where your corners sit. It says nothing about where the water goes once it hits the ground.
A topographic survey maps high points, low points, and natural swales across the entire parcel. That data shows the direction stormwater will flow during a heavy rain, not just where it pools.
This matters in Arkansas more than most places. Large parts of the state sit on heavy clay soil that drains slowly. Add a fast-moving thunderstorm, and low spots on a lot can turn into standing water fast.
Before you design a stormwater plan, grade a pad site, or place a building foundation, you need to know where the natural drainage paths already are. A boundary line can’t tell you that. Elevation data can.
Slope Percentages That Decide What You Can Actually Build on a Hillside Lot
A lot can look perfectly buildable on paper. The boundary lines form a clean rectangle. The acreage checks every box.
Then you get to the site and find out half of it sits on a grade too steep to build on without major earthwork.
A topographic survey calculates slope percentage across the parcel, not just at the corners. That data defines the real buildable envelope, the part of the lot where construction is actually practical without excessive cutting, filling, or retaining walls.
This is especially common in the Ozark and Ouachita regions, where rolling terrain is the rule rather than the exception. A boundary survey will confirm you own the hillside. It won’t tell you how much of it you can build on.
Locating Tree Canopies and Natural Features for Local Tree-Preservation Rules
Several cities have rules tied to tree preservation or canopy retention as part of their development permitting process. Requirements vary by city, so it’s worth checking your local planning department before you finalize a site plan.
A topographic survey typically locates significant trees on the property and can show canopy driplines, the outer edge of a tree’s branches. A boundary survey has no reason to include any of that. It’s only concerned with where the property lines fall.
For a developer, knowing where large trees sit in relation to a planned building pad, driveway, or utility run can save a redesign later. It’s much easier to work around a mature tree during initial planning than after grading has already started.
Spotting Wet-Weather Springs, Erosion Areas, and Drainage Trouble Spots Before You Build
Some of the trickiest site conditions only show up after a few days of steady rain.
Seasonal springs, wet-weather seeps, and erosion channels can appear on a lot that looks completely dry most of the year. A topographic survey captures these existing conditions when they’re visible on the ground. A boundary survey, focused purely on corners and property lines, has no reason to record any of it.
Finding these problem spots during the survey phase, rather than after construction starts, gives you time to plan around them. That might mean shifting a building pad, adding drainage, or simply budgeting for the extra site work up front instead of discovering it mid-project.
Showing Roof Overhangs, Eaves, and Structures That Extend Past the Property Line
This one catches people off guard. A boundary survey shows exactly where the legal line sits. It doesn’t always account for what’s physically built near that line.
A topographic survey maps existing improvements in relation to elevation and position on the ground. That process often reveals when a neighboring structure, like a roof eave, gutter, or overhang, physically extends past the property line, even if the foundation itself doesn’t.
For a developer working near an existing property line, this detail matters. An overhang crossing the line can affect setback compliance and create an encroachment issue that a boundary survey alone would never flag, since it only measures where the line is, not what’s hanging over it.

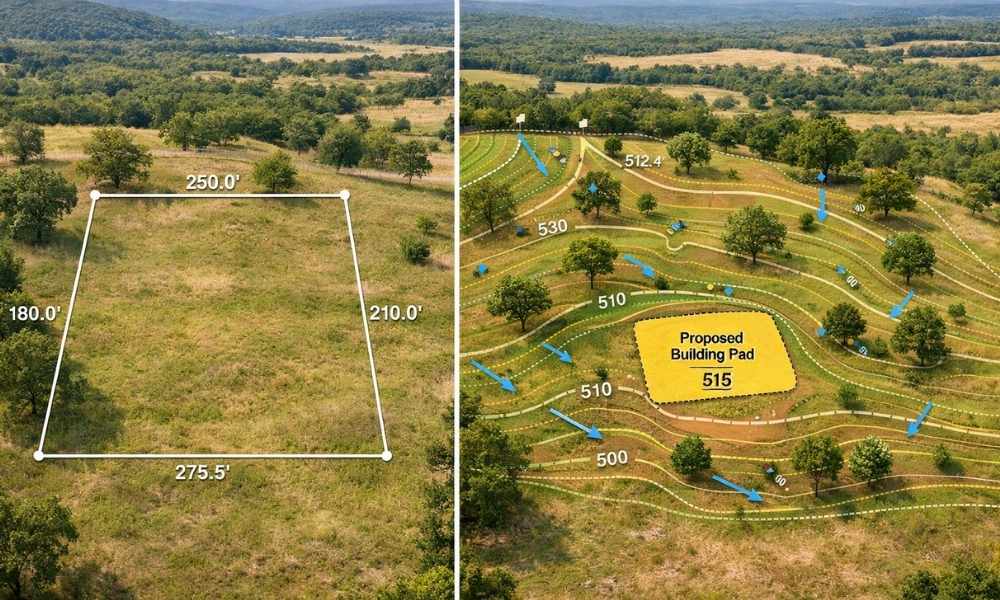

Two Surveys, Two Different Jobs
A boundary survey answers a legal question: where does my property start and end. A topographic survey answers a design question: what does the land actually do, and what can I build on it.
For most development projects, you’ll eventually need both. Knowing what each one actually shows helps you plan the site work, budget the project, and avoid surprises once the grading equipment shows up.
